Next Plan Development Limited

Project Name:

Building Type:

Client:

Location:

Height:

Construction Area:

Ref ID:

Work Status:

Service Provided:

• Architectural Design
• Structural Design
• Electrical Design
• Plumbing & Sanitary Design
• Graphic Design
• 3D Modeling
• Cost Estimation
• Part Time Supervision

Description:

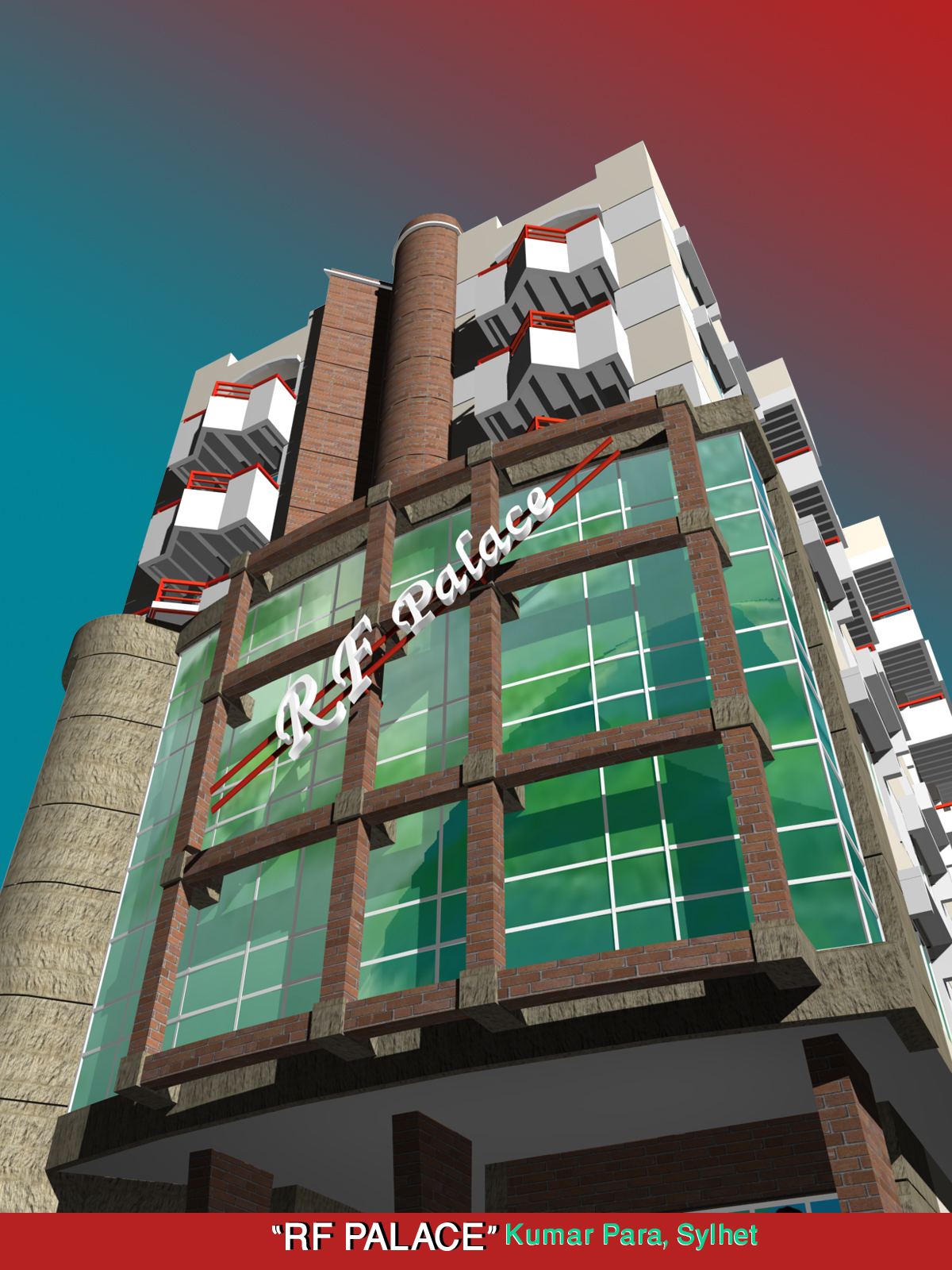

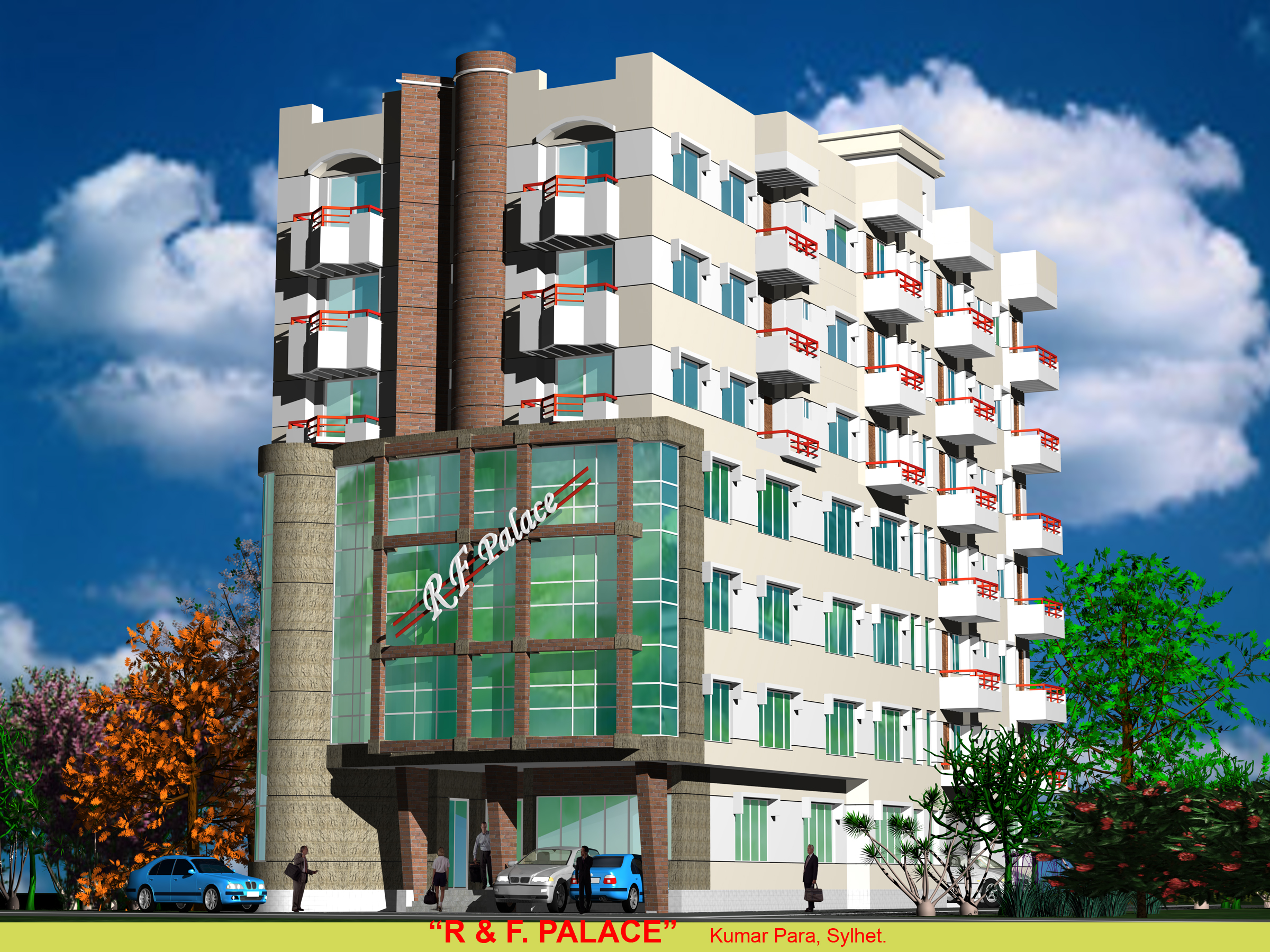

“Rahim Palace” is a modern luxurious apartment cum commercial Complex situated at Kumarpara main road. Unique architecture & façade with structural integrity make it special other similar projects. Modern life facilities and amenities are well equipped in this building considering safety & security of the dwellers who will lives in this prestigious Complex. Expatriate sylheties are most welcomed to become the high-status owner of this unique building.

Location: Location of “Rahim Palace” is so placed that you can easily catch all sort of vehicles to travel anywhere of the city for your basic needs like shopping, going to work place, hospital, school, college, mosque etc. It is only 100 yards away from heart of the Sylhet city Zindabazar point & Sylhet Judge Court point. Sylhet Shah-e-Eidgha, Jalalabad gas office, Sylhet womens medical college & hospital, Osmani children park, Keen Bridge etc are about 20 minutes driving distance from this complex. Road communication with all of the important institutions of Sylhet such as Shajalal university of Science & technology, Osmani medical college & hospital, Jalalabad Ragib Rabeya
medical college & hospital, Sylhet Osmani International Airport, Jalalabad cantonment public School & college etc are very good from this project.


Briefly “Rahim Palace”:

Project Name: Rahim Palace
Project Address: 24/1, Kumar Para
Sylhet.
Land Area: 16 Decimal.
Number of Apartment: 12 (Twenty Two)
Size of Apartment: Type A- 1865 sft, Type B- 1330 sft, Type C-1273sft.
Size of office: 1148sft-1406 sft.
Ground floor: Car Parking.


General facilities & Amenities:

* 01(one) Nos Superior qualities Lift.
* Standby Generator.
* Spacious stair case.
* Large parking facilities.
* Telephone & multi-channel dish connection in each flat.
* Good quality standard glazed tiles for floors.
* Bathrooms fitted with all modern fittings.
* Hot & Cold water facility.
* Kitchen will fitted with double burner gas outlet, Single-bow single-tray stainless steel sinks, and good quality exhaust fan with cover.
* Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported) complete with lock, roller & mohair lining. Grill and Mosquito net also provided.


Security :

* Spacious entrance and driveway with 24 hours security arrangement to control of incoming and outgoing vehicle, persons, goods etc.
* Full of under C.C.TV camera
* Reception with all modern facilities.
* PABX/ Intercom facility with each apartment.
* Modern fire fighting system. Fire extinguisher, smoke detector & other fire mitigating equipments will be available in each floor.



Structural Feature:

• Total project will be designed and supervised by the experienced and professional structural design engineers.
• Building design parameters will be based on Bangladesh National Building Code (BNBC), American concrete institute (ACI) and American Standard of Testing Materials (ASTM) Codes.
• Comprehensive checking and testing of concrete & reinforcement at recognized testing authority such as BUET, SUST, Bangladesh House Building Research Institute etc.
• Earthquake and Wind force intensity has been considered in structural design as per Bangladesh National Building Code (BNBC).


Electrical:
* Concealed wiring with super quality cables & switches. Fan, Dimmer & electrical fittings excluded.
* Meters: All apartments will have independent Gas and Electric meter.
* Cable Line: Provision for satellite dish/TV antenna system. Concealed cable outlets in living room & master bed.
* Telephone Line: Telephone socket outlets in master bed and living room.
* Roof: Common to all owners for cloth drying and general use.


Walls & Plaster:

* 125mm thick solid brick walls with well burnt 1st class bricks.
* Proportion 1:6 using 100% sylhet sand to avoid salinity.
* Sand cement plaster using washed clean medium sand. External plaster shall have admixture to


protect dampness.
Floors: Floor tiles (Fu Wang/Rak/CBC) in all rooms.

Paintings:

* Interior: Distemper of Berger Robbialac of elegant color.
* Exterior: Weather coat / snowcem paint of berger Robbialac or equivalent of elegant color.


Bath Rooms:

* Good quality standard sanitary fittings.
* Glazed tiles (Fu-Wong / RAK/CBC) up to ceiling height in all toilets wall.
* 300mm x 300mm homogeneous tiles (Fu-Wang) in all floors.
* Provision for Hot & Cold water system with head shower in master bathroom (geyser excluded).
* Good quality local made fittings.


Kitchen:

* 300 mm x 300 mm homogeneous tiles (Fu-wang) in floor.
* Ferro cement work top with homogeneous tiles (Fu-Wang).
* Plastic paint, glazed tiles (Fu-Wang) up to 2'-0” above the work top.
* Single-bow single-tray stainless steel sink. Double burner gas outlet. China origin good quality exhaust fan with cover.

Doors :

* Frame: Shilkarai / Telsu wood with lacquer varnish.
* Shutter: Entrance door of solid wood imported from Malaysia / Indonesia. with i) Door Chain, ii) Check viewer, iii) Apartment No. plate (brass) v) Mortise lock.
* Internal doors shall be of teak chamble veneered partex with lacquer varnish.
* Toilets will have imported uPVC / plastic wood shutter with frame.


Windows :

* Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported) complete with lock, roller & mohair lining.

Location Map:
