Project Name:

Building Type:

Client:

Location:

Height:

Construction Area:

Ref ID:

Work Status:

Service Provided:

• Architectural Design
• Structural Design
• Electrical Design
• Plumbing & Sanitary Design
• Graphic Design
• 3D Modeling
• Cost Estimation
• Land Planning and Plotting
• Part Time Supervision

Description:

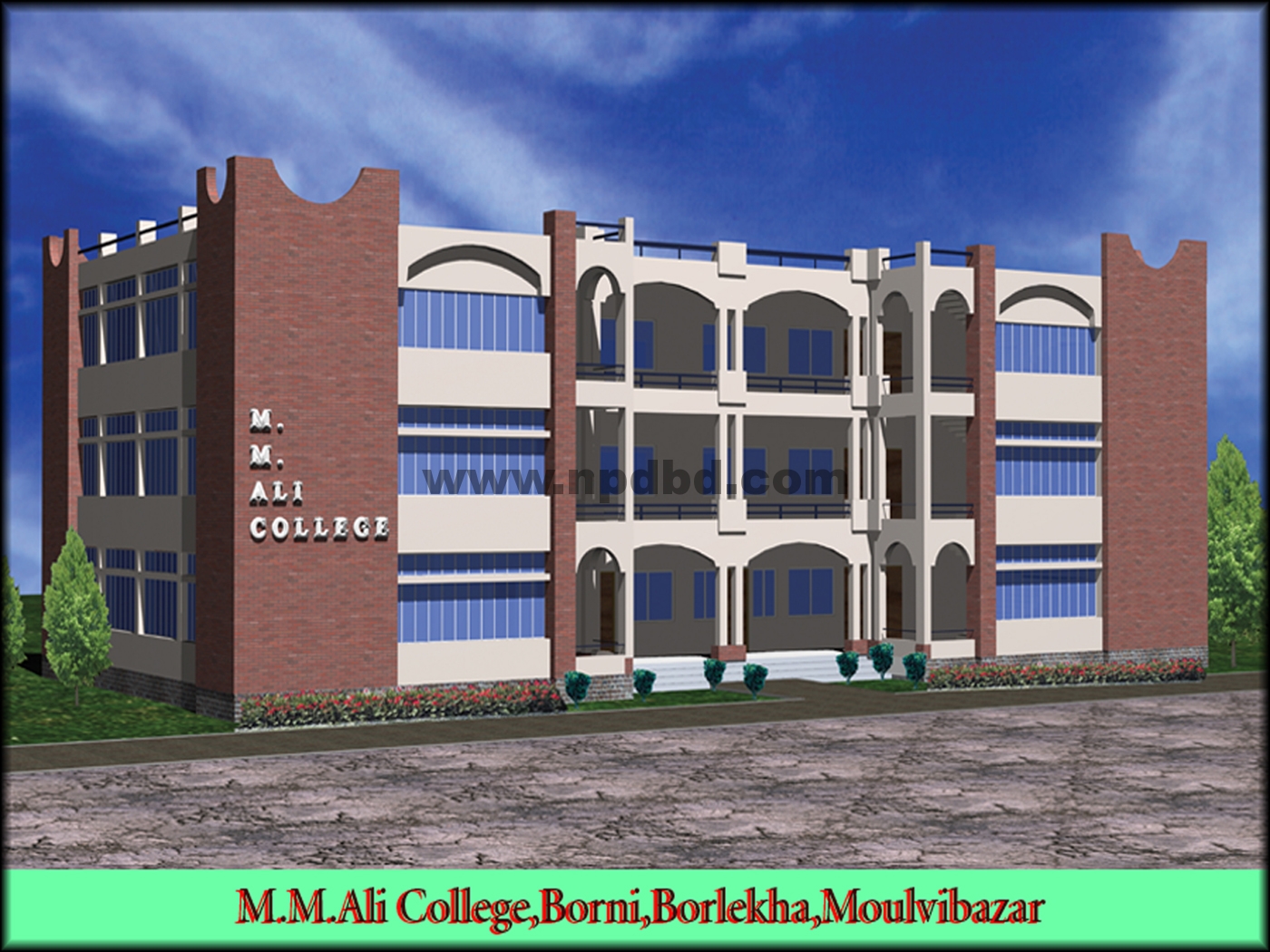

- “M. M. Ali College” is a 3 (Three) storied college building of which ground floor consist of two class room with common room and Principal, Vice principal, teachers staff room and other two floor are allocated for class rooms, four large class rooms in each floor available. Wide verandah and spacious stair case is there for easy accessibility to this building. Master plan of this college is very nice, large nice play ground in the middle and wide road around the play ground connecting the college buildings with each other. There are four other buildings are proposed in the master plan which are administrative building, class building, library building and laboratory building. A nice lake is proposed in front of the college campus which will definitely increase the beauty and dignity of this college.


Location: M. M. College is situated at Borni village on Borolekha_Chandorgram road, Borolekha, Moulovibazar. Very quite and natural beauty of this locality make the college unique in this area. Student of this college will enjoy the Large, green natural beauty of this campus. This college is away from city life’s business and crowd so that one can avail plenty of fress air and natural beauty of village life. A perfect location for enjoy the student life.



Briefly “M. M. Ali College”

Project Name: M. M. Ali College
Project Address: Borni village, Borolekha_Chandorgram road, Borolekha, Moulovibazar.
Nos.of Floor: 03 (Three) storied College building.
Ground Floor: Offices & Class room
1st & 2nd floor: Class rooms.



General Facilities & Amenities:

* Standby Generator.
* 01(One) Spacious stair cases.
* Large wide Lobby & entrance stair.
* Good quality standard glazed tiles for floors.
* Bathrooms fitted with all modern fittings.
* Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported)
complete with lock, roller & mohair lining. Grill and Mosquito net also provided.
* Good quality standard sanitary fittings.
* Glazed tiles (Fu-Wong / RAK/CBC) up to ceiling height in all toilets wall.
* 300mm x 300mm homogeneous tiles (Fu-Wang) in all floors.
* Good quality local made fittings.
* Concealed wiring with super quality cables & switches.


Security:

* Spacious entrance and 24 hours security arrangement to control of incoming and outgoing vehicle,
persons, goods etc.
* Round the clock under C.C.TV camera.
* Reception with all modern facilities.
* PABX/ Intercom facility with each apartment.
* Modern fire fighting system. Fire extinguisher, smoke detector & other fire mitigating equipments
will be available in each floor.

Structural Feature:

• Total project will be designed and supervised by the experienced and professional structural design
engineers.
• Building design parameters will be based on Bangladesh National Building Code (BNBC), American
concrete institute (ACI) and American Standard of Testing Materials (ASTM) Codes.
• Comprehensive checking and testing of concrete & reinforcement at recognized testing authority such
as BUET, SUST, Bangladesh House Building Research Institute etc.
• Earthquake and Wind force intensity has been considered in structural design as per Bangladesh
National Building Code (BNBC).

Walls & Plaster:

* 125mm thick solid brick walls with well burnt 1st class bricks.
* Proportion 1:6 using 100% Sylhet sand to avoid salinity.
* Sand cement plaster using washed clean medium sand. External plaster shall have admixture to
protect dampness.

Floors: Floor tiles (Fu Wang/Rak/CBC) in all rooms.

Paintings:

* Interior: Distemper of Berger Robbialac of elegant color.
* Exterior: Weather coat / snowcem paint of berger Robbialac or equivalent of elegant color.


Doors:

* Frame: Shilkarai / Telsu wood with lacquer varnish.
* Shutter: Entrance door of solid wood imported from Malaysia / Indonesia. with i) Door Chain, ii)
Check viewer, iii) Apartment No. plate (brass) v) Mortise lock.
* Internal doors shall be of teak chamble veneered partex with lacquer varnish.
* Toilets will have imported uPVC / plastic wood shutter with frame.

Windows:

* Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported)
complete with lock, roller & mohair lining.
