Next Plan Development Limited

Project Name:

Building Type:

Client:

Location:

Height:

Construction Area:

Ref ID:

Work Status:

Service Provided:

• Architectural Design
• Structural Design
• Electrical Design
• Plumbing & Sanitary Design
• 3D Modeling

Description:

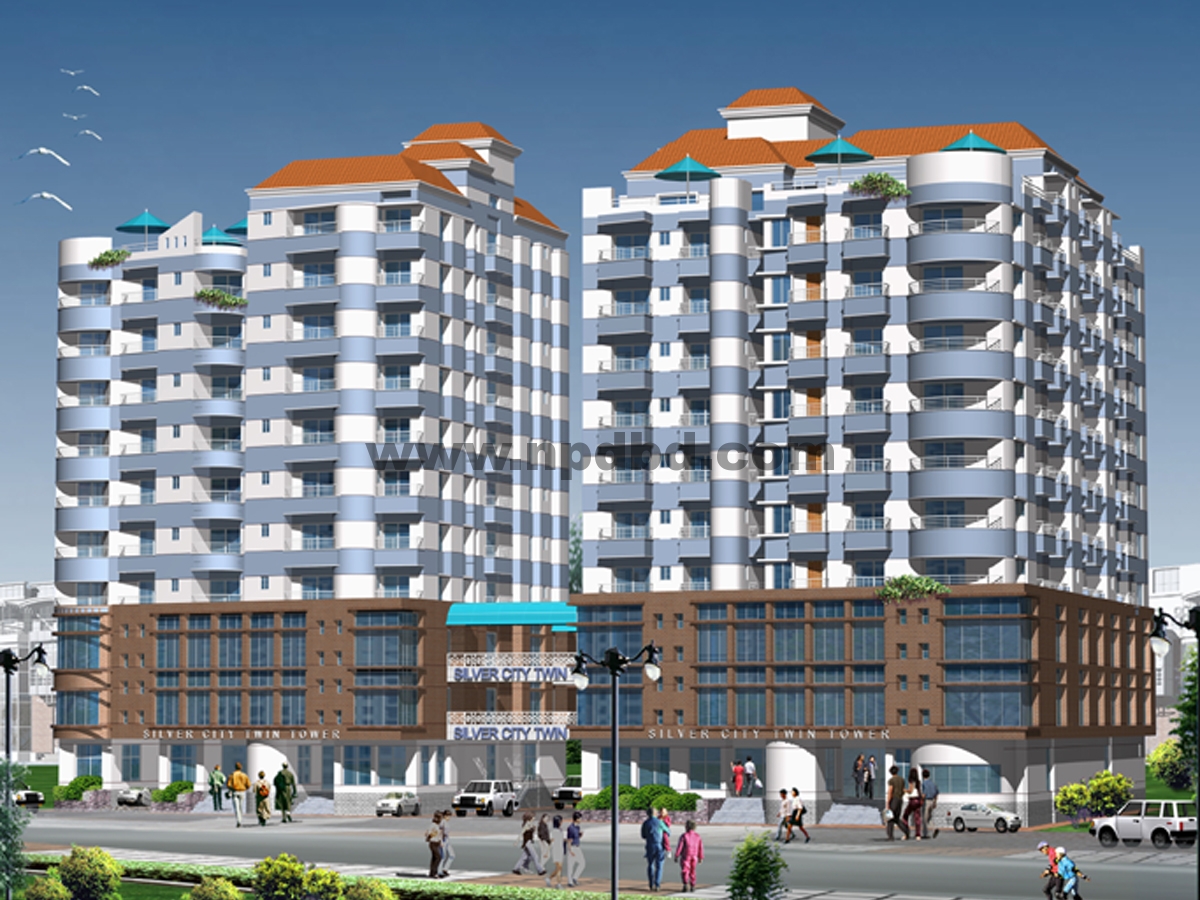

“Silver City Twin Tower” is a 12 (Twelve) storied Commercial cum Residential Complex of which one basement includes. Two separate identical buildings are standing up both sides of a 30 feet wide road which are connected by two walk way Bridge from 1st and 2nd floor of both buildings. These walking bridges connect both building into a single one so that one can get into one building and can get off from other building. Excellent hilly terrain and evergreen natural beauty of this area makes it unique from any other locations of Sylhet City. Although it is very close to Sylhet city, but away from city life’s busyness and crowds. Very quiet and nice natural environment prevails here, a perfect location to keep you stress less as well as having enjoying all of the city life amenities

Location: The project is located at Silvercity-1 R/A and 100ft Wide Osmani International Airport by-pass Road, Dist: Sylhet, Upojila: Sylhet Sadar. The project has a total of 46.01 Decimal lands & will be construct an 11 storied plus one basement high rise Building. Silvercity-1 R/A is just 15 minutes driveway from Zindabazar point. On the way of Silvercity-1 R/A through Osmani International Airport road, one will come across to the Lakkatora and Malnichera tea Garden, the greenest & naturally charming area of Sylhet City. Silvercity twin tower is located just next to the Adventure world park and very close to Sylhet Osmani International Airport and Parjaton Motel.


Briefly “Silver City Twin Tower”:

1. Project Name: Silvercity Twin Tower
2. Proposed Building: 11(Eleven) Storied Building with One Basement
3. Land Area: Side A: 19.48 Decimal
Side B: 26.53 Decimal
Total: 46.01 Decimal
4. Nature of the Project : Market, Office & Apartment
5. Project Location: Silvercity-1 R/A
Osmani International
Airport By-Pass Road, PO-Cadet College,
Dist: Sylhet, Bangladesh.

6. Project Contents:

a). Underground: Car Parking.
Number of parking, A side= 19 Nos
B Side= 28 Nos
Total = 47 Nos
b). Ground Floor: Shopping Area.
Total Number of shops, A side=16 Nos
B Side=34 Nos
Total = 50 Nos
Sizes of the shops = 80.28 Sft to 570.02 Sft
c). 1st & 2nd Floor: Office Space.
Total Number of office Space, A side= 14 Nos
B Side=18 Nos
Total =32 Nos
Sizes of the offices spaces = 260.46 Sft to 1378.04 Sft

d). 3rd to 10th Floor: Apartment.
Number of Flats, A side= 30 Nos
B Side= 53 Nos
Total =83 Nos
Sizes of the Flats =1002.69 Sft to1907.06 Sft



General Facilities & Amenities:

* 04 (Four) nos. standard size lift. 02(Two) for Side_A and 02 (Two) for Side_B.
* Standby Generator 02 (Two) nos. One for Side _A & One for Side_B
* 04(Four) Spacious stair cases. Two for Side_A & Two for Side_B.
* Large parking facilities in both Side Basement.
* Telephone & multi-channel dish connection in each floor.
* Good quality standard glazed tiles for floors.
* Bathrooms fitted with all modern fittings.
* Hot & Cold water facility.
* Kitchen will fitted with double burner gas outlet, Single-bow single-tray stainless steel sinks,
and good quality exhaust fan with cover.
* Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported)
complete with lock, roller & mohair lining. Grill and Mosquito net also provided.


Security :

* Spacious entrance and driveway with 24 hours security arrangement to control of incoming and
outgoing vehicle, persons, goods etc.
* Security Measures: Round the clock under CCTV monitoring.
* Reception with all modern facilities.
* PABX/ Intercom facility with each apartment.
* Modern fire fighting system arrangement in lift lobby of each floor. Fire extinguisher, smoke
detector & other fire mitigating equipments will be available in each floor.


Structural Feature:

• Total project will be designed and supervised by the experienced and professional structural design
engineers.
• Building design parameters will be based on Bangladesh National Building Code (BNBC), American
concrete institute (ACI) and American Standard of Testing Materials (ASTM) Codes.
• Comprehensive checking and testing of concrete & reinforcement at recognized testing authority such
as BUET, SUST, Bangladesh House Building Research Institute etc.
• Earthquake and Wind force intensity has been considered in structural design as per Bangladesh
National Building Code (BNBC).

Electrical:
* Concealed wiring with super quality cables & switches. Fan, lights & other electrical
fittings excluded.
* Meters: All apartments will have independent Gas and Electric meter.
* Cable Line: Provision for satellite dish/TV antenna system. Concealed cable outlets in living room
& master bed.
* Telephone Line: Telephone socket outlets in master bed and living room.

Walls & Plaster:

* 125mm thick solid brick walls with well burnt 1st class bricks.
* Proportion 1:6 using 100% Sylhet sand to avoid salinity.
* Sand cement plaster using washed clean medium sand. External plaster shall have admixture to
protect dampness.

Floors: Floor tiles (Fu Wang/Rak/CBC) in all rooms.

Paintings:

* Interior: Distemper of Berger Robbialac of elegant color.
* Exterior: Weather coat / snowcem paint of berger Robbialac or equivalent of elegant color.

Bath Rooms:

* Good quality standard sanitary fittings.
* Glazed tiles (Fu-Wong / RAK/CBC) up to ceiling height in all toilets wall.
* 300mm x 300mm homogeneous tiles (Fu-Wang) in all floors.
* Provision for Hot & Cold water system with head shower in master bathroom (geyser excluded).
* Good quality local made fittings.


Kitchen:

* 300 mm x 300 mm homogeneous tiles (Fu-wang) in floor.
* Ferro cement work top with homogeneous tiles (Fu-Wang).
* Plastic paint, glazed tiles (Fu-Wang) up to 2'-0” above the work top.
* Single-bow single-tray stainless steel sink. Double burner gas outlet. China origin good quality
exhaust fan with cover.

Doors :

* Frame: Shilkarai / Telsu wood with lacquer varnish.
* Shutter: Entrance door of solid wood imported from Malaysia / Indonesia. with i) Door Chain, ii)
Check viewer, iii) Apartment No. plate (brass) v) Mortise lock.
* Internal doors shall be of teak chamble veneered partex with lacquer varnish.
* Toilets will have imported uPVC / plastic wood shutter with frame.

Windows :

Sliding aluminum windows with 3” standard BTA anodized sections with 5mm clear glass (imported) complete with lock, roller & mohair lining.
